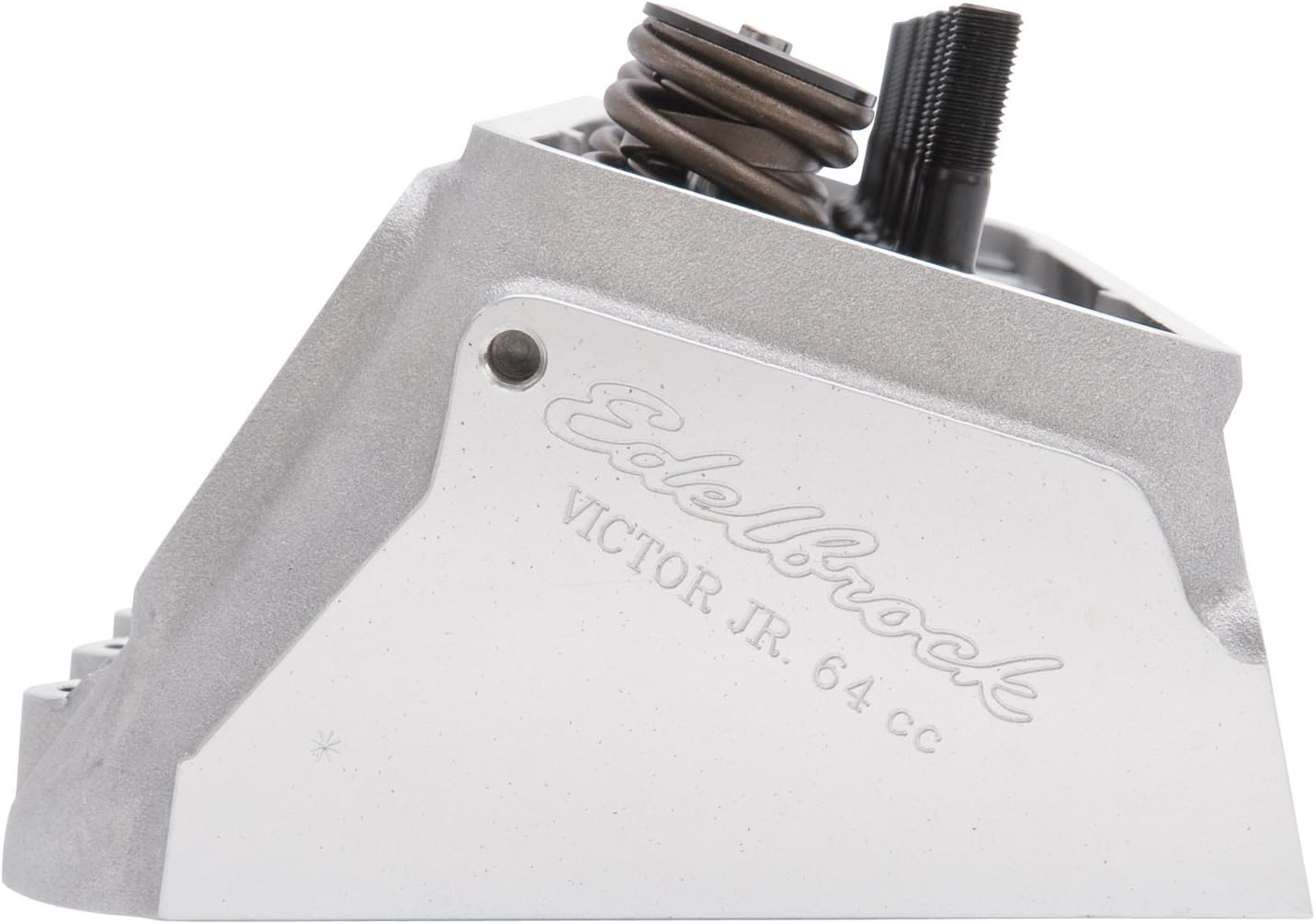

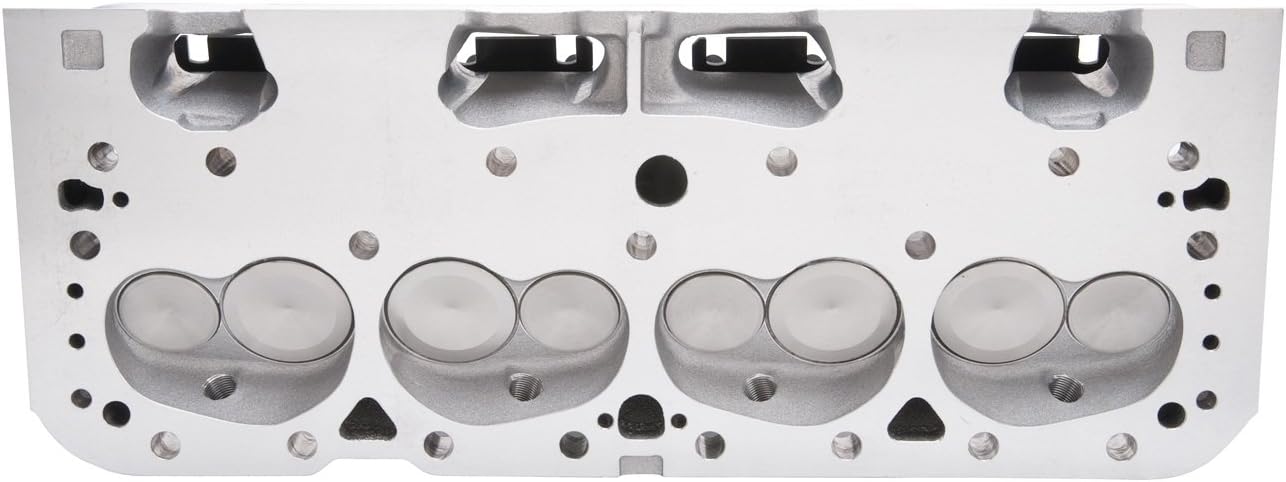

Edelbrock 77589 Victor Junior Cylinder Head

The Edelbrock Victor Junior Cylinder Head is designed specifically for maximum horsepower and ideal for many types of competition and ultra-high performance street machines. This head features reinforced rocker stud bosses, high-flow intake/exhaust ports and specially contoured combustion chambers. Extra thick deck surfaces provide maximum head gasket retention with high-compression ratios. It is ideal for those who desire affordable heads that make maximum power. This cylinder head features CNC gasket-matched port entries/exits with blended valve bowls. Standard hardware is accepted and most are available in bare and assembled versions. The intake runner volume is 215cc; the exhaust runner volume is 85cc and the combustion chamber volume is 64cc. The diameter of the intake valve is 2. 08 and the diameter of the exhaust valve is 1. 6. The outside diameter of the outer spring is 1. 55 and the maximum valve lift is 0. 65.

• Made of aluminum with a natural finish
• Rocker arm nut thread size is 7/16-20
• Guide plate pushrod size is 5/16
• Includes intake valves, exhaust valve, valve springs, retainers, locks, guide plate and valve stem seals
• Does not include damper spring, rocker arms, nuts and drilled steam holes
