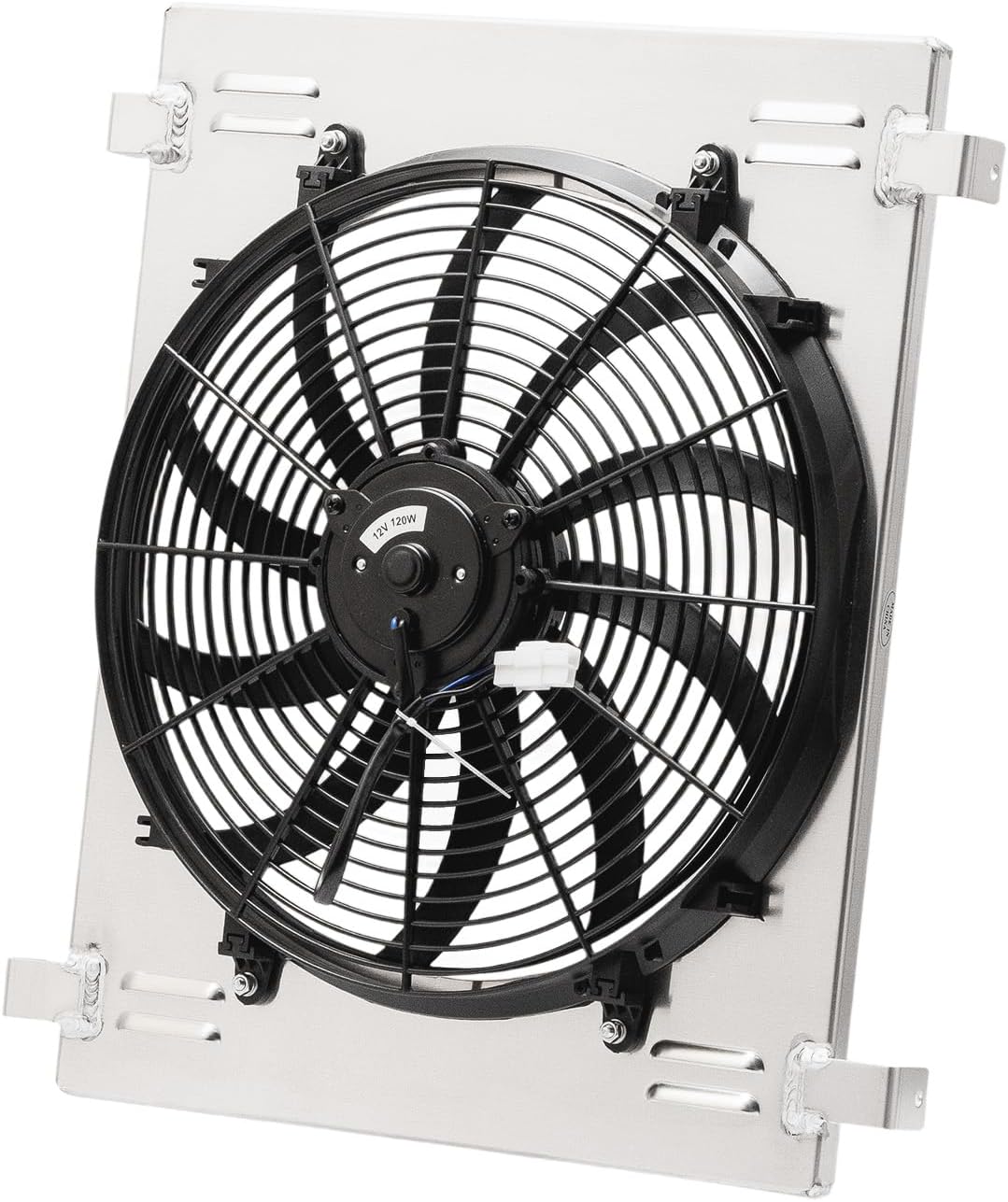

Aluminum Radiator Shroud Electric Fan Fits For 1932 Ford Street Rod Hi-High Boy Chevy V8 Engine AT

Package Include: 1 X AA5052 Aluminum Shroud 1 X 16" Fan 120W (Includes mounting kits) 1 X Thermostat Relay Kit Application: FITS: 1932 FORD HI BOY (FULL HEIGHT GRILL SHELL) SET UP FOR CHEVY MOTOR ENGINE Fit for radiator size: 21 1/2'' Wide x 27 3/4'' Tall Radiator Configuration: Material: Aluminium High Performance Racing Spec. Features: 100% Leak Tested, 4 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation 16" Fan Voltage: DC 12 Volts Maximum Fan CFM: 2150 cfm Wattage: 120 Wattage Thickness (in): 2.500" Number of Blades: 10 S-Type blades Maximum Fan RPM: 2,250 rpm Amp Draw: 10 amps Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator

• Fan Diameter (inch): 16'' / Thickness (inch): 2.5''
• This Shroud & Fan fit Radiator Size Core Dimensions(inch):21 1/2'' Wide x 27 3/4'' Tall
• High Performance Racing Design, Improves Cooling by 30%+ Temp
• Light Weight Direct Bolt-On OEM Fitment or Replacement
• Please note that this listing only includes Shroud + 1pc 16inch Fan + Thermostat Relay Kit, NOT includes the Radiator!
